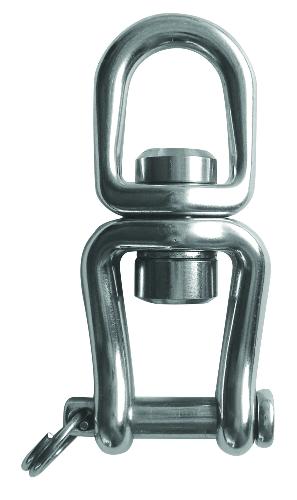

Tylaska 3 1/16" T8 Standard/Clevis Bail Swivel

Tylaska 3 1/16" T8 Standard/Clevis Bail Swivel

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications:

Shackle Type: T8 Standard/Clevis Bail Swivel

Safe Working Load (lb.): 4,000 (1,810kg)

Breaking Strength (lb.): 8,000 (3,630kg)

Weight (oz.): 3.5

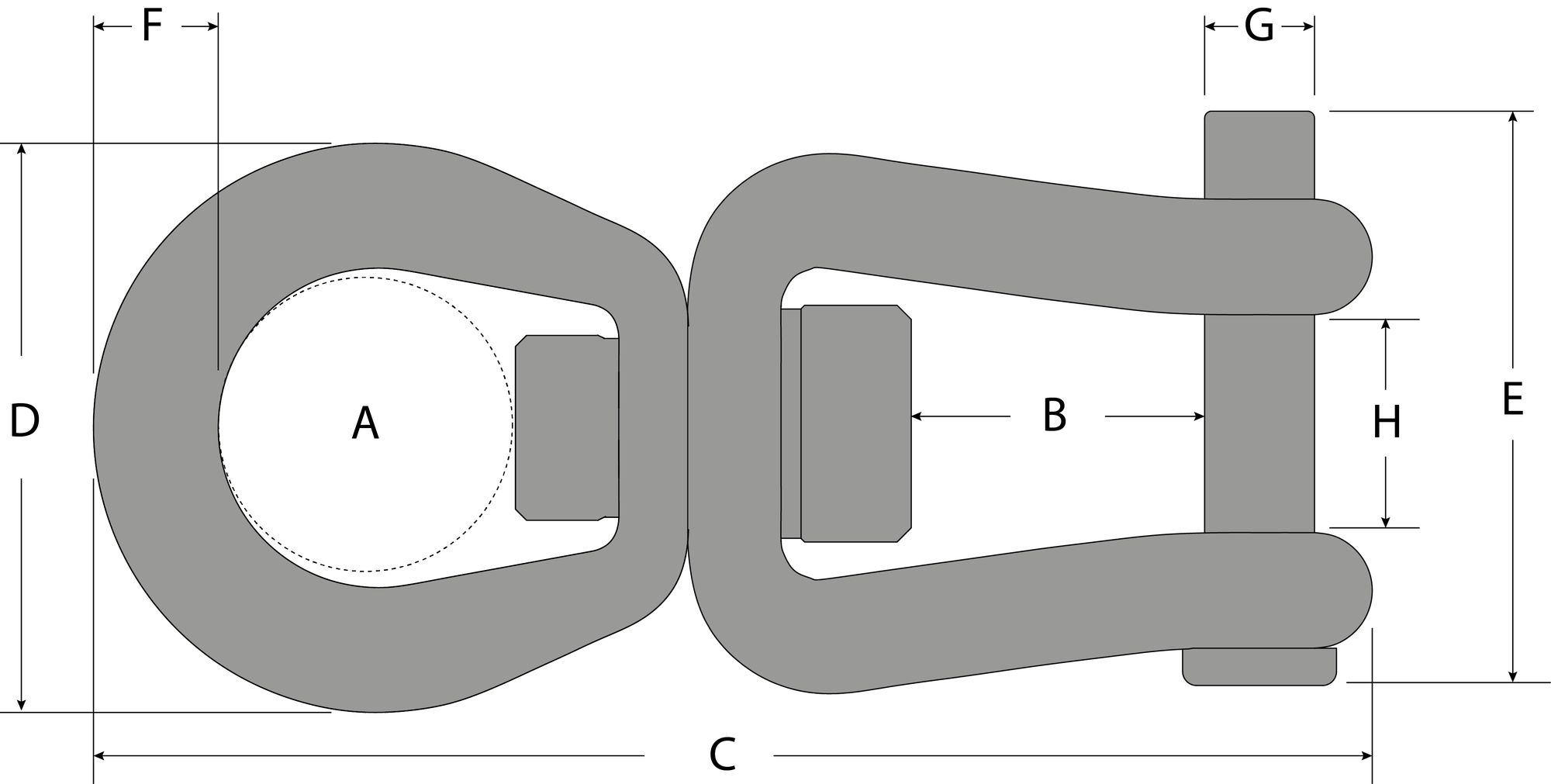

Dimensions:

A (in.): 0.58" (14.7mm)

B (in.): 0.66" (16.8mm)

C (in.): 3.00" (76.2mm)

D (in.): 1.19" (30.2mm)

E (in.): 1.37" (76.2mm)

F (in.): 0.28" (7.1mm)

G (in.): 0.27" (6.9mm)

H (in.): 0.52" (13.2mm)
