Product Description

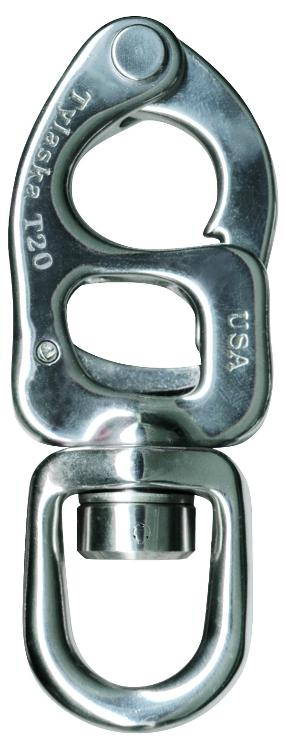

Tylaska 5" T20 Standard Bail Snap Shackle
The T20 is a larger shackle designed for mid to large sized boats. They are popular on the America's Cup racing circuit. The T-20 has a breaking strength of 20,000 lbs. Standard bail configurations weigh only 11.9 oz. Ideal for 40 to 70 foot sailboats.
Specifications:
Shackle Type: T20 Standard Bail
Safe Working Load (lb.): 10,000 (4,540kg)
Breaking Strength (lb.): 20,000 (9,070kg)
Boat Size (ft.): 40'-70'
Weight (oz.): 12.7 (360g)

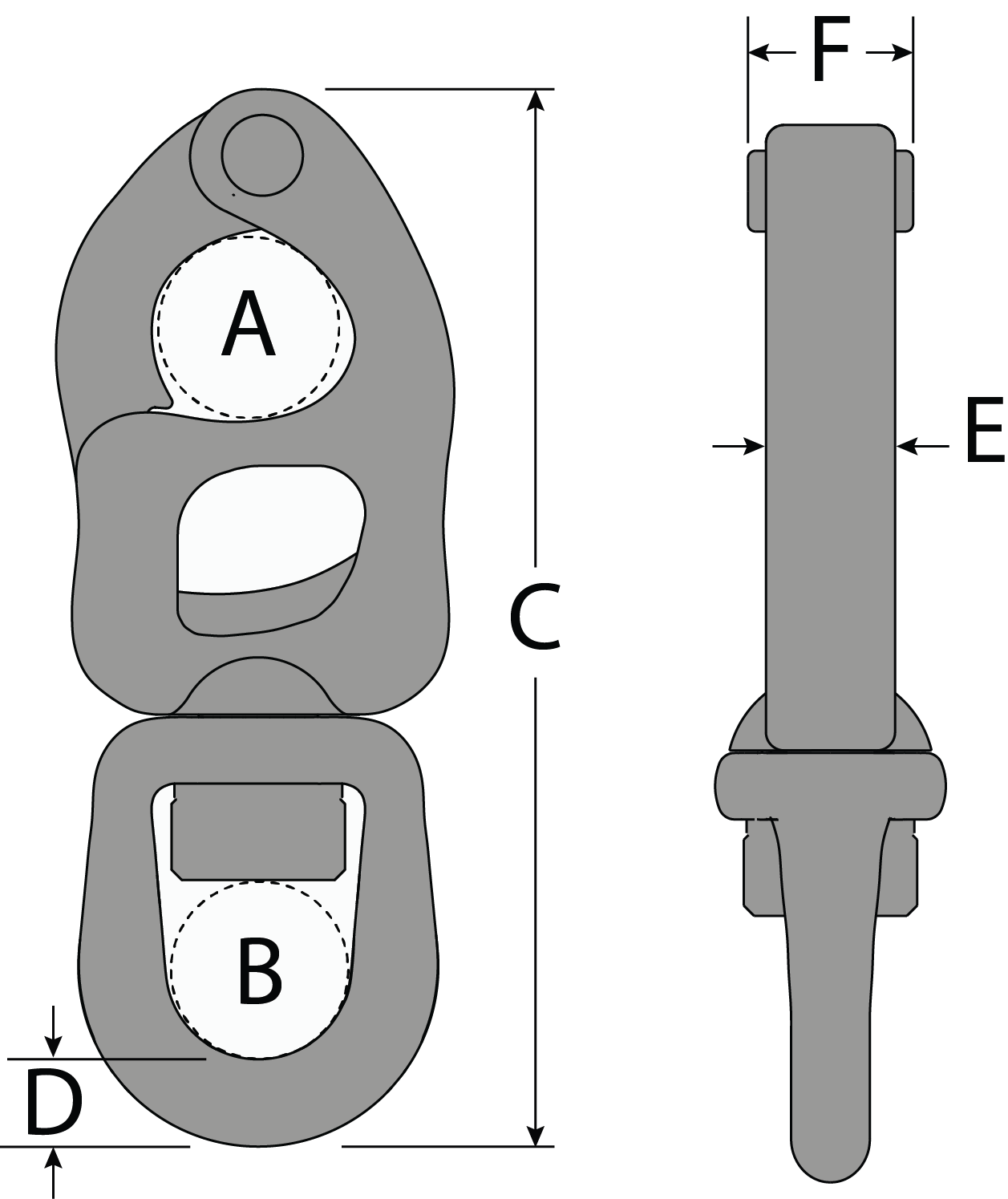

Dimensions:
A (in.): 0.99" (25.1mm)
B (in.): 0.99" (25.1mm)
C (in.): 5.27" (134mm)
D (in.): 0.45" (11.4mm)
E (in.): 0.55" (14mm)
F (in.): 0.75" (19mm)
