Product Description

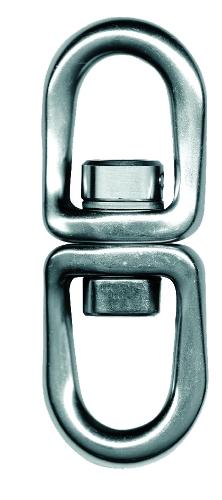

Tylaska 2 13/16" T8 Standard/Standard Bail Swivel
Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications:
Shackle Type: T8 Std/Std Bail Swivel
Safe Working Load (lb.): 4,000 (1,810kg)
Breaking Strength (lb.): 8,000 (3,630kg)
Weight (oz.): 3.0

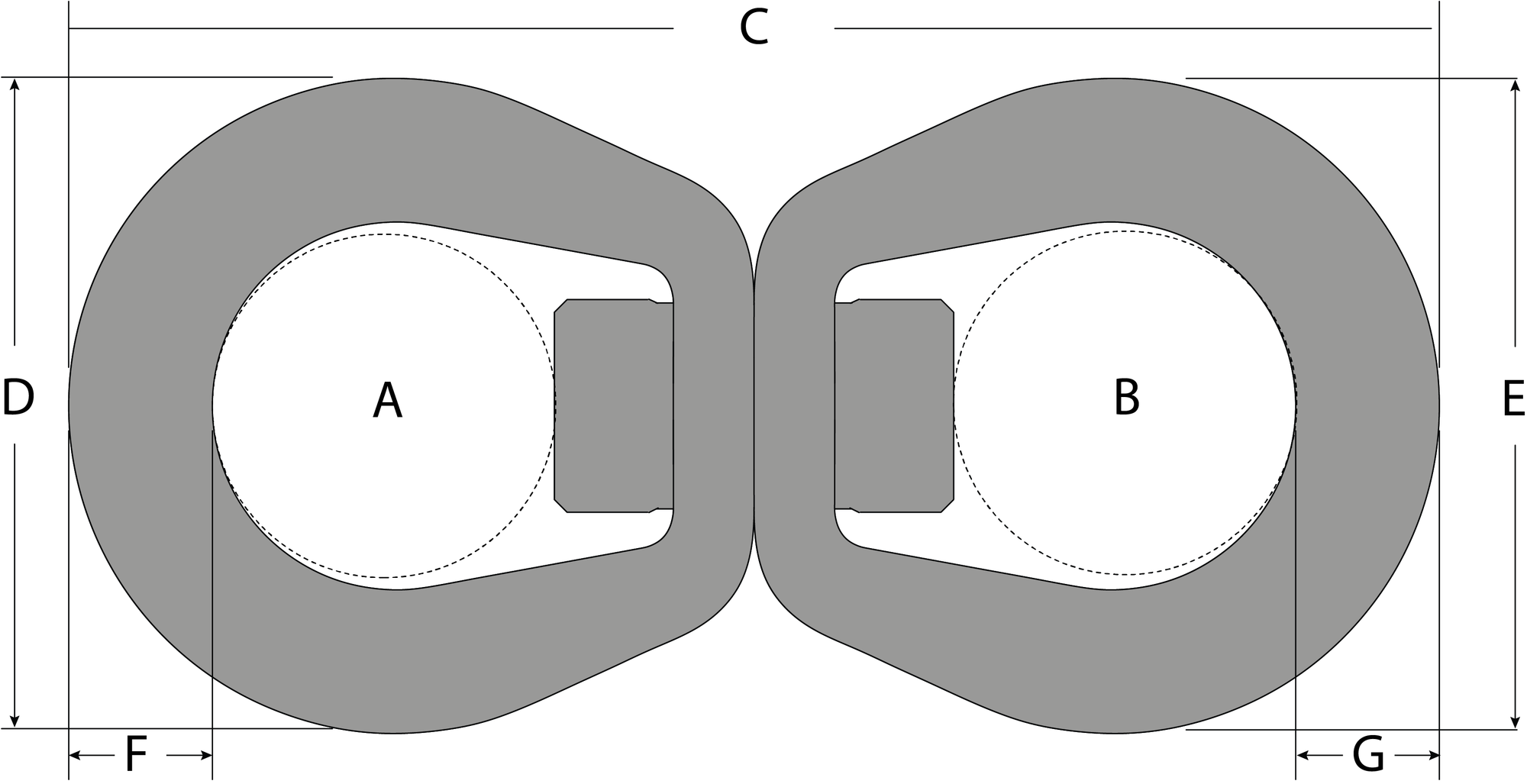

Dimensions:
A (in.): 0.58" (14.7mm)
B (in.): 0.58" (14.7mm)
C (in.): 2.84" (72.1mm)
D (in.): 1.19" (30.2mm)
E (in.): 1.19" (30.2mm)
F (in.): 0.28" (7.1mm)
G (in.): 0.28" (7.1mm)
