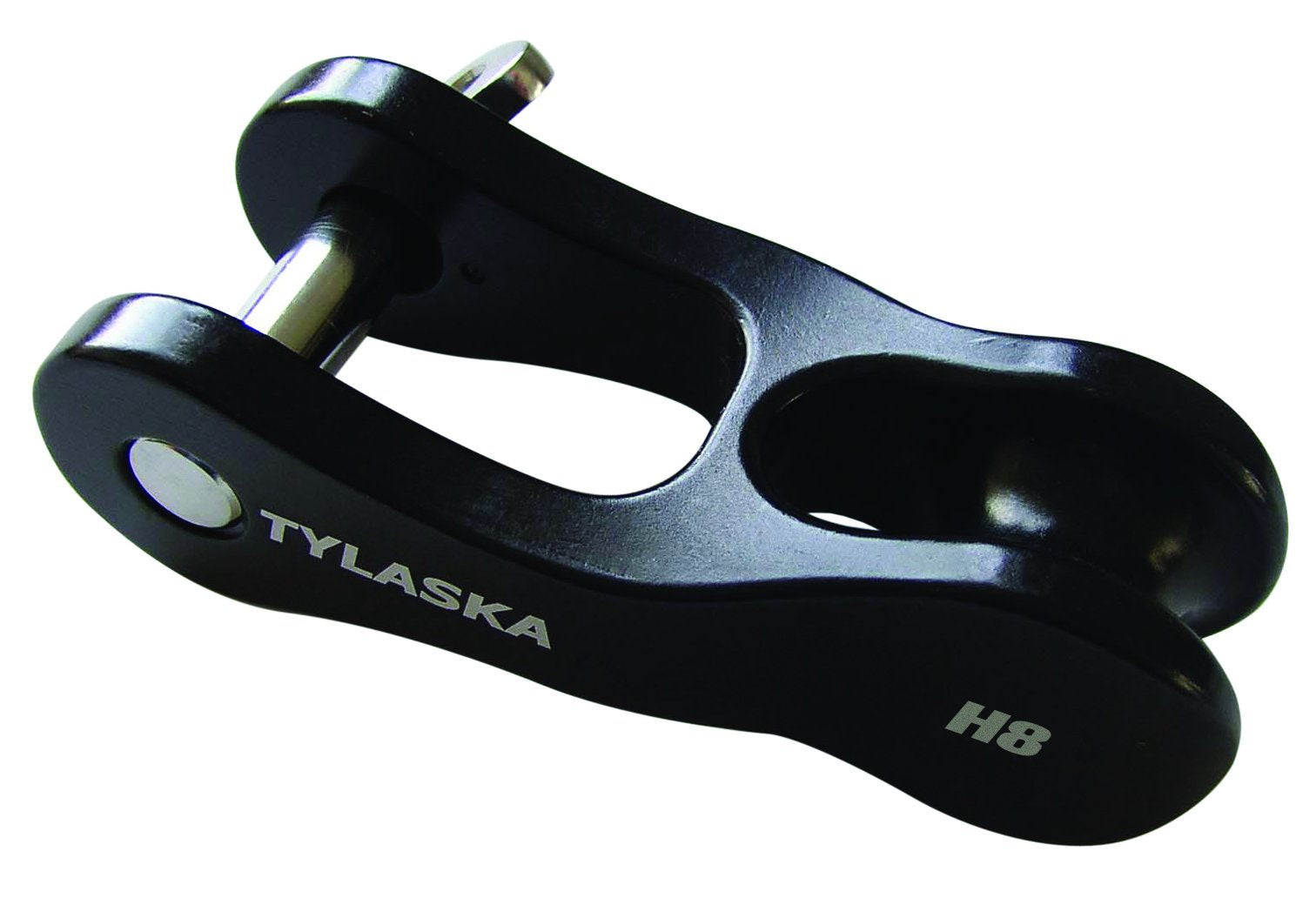

Tylaska 3.15" H8 Aluminum Halyard Shackle

Tylaska 3.15" H8 Aluminum Halyard Shackle

Tylaska’s halyard shackles are machined from aerospace grade aluminum plate and hard-coat anodized to military specifications for superior strength and durability. A captive 17-4PH stainless steel pin makes for trouble-free operation. The machined thimble surface is suitable for permanently spliced fixed halyards.

Specifications:

Shackle Type: H8

Safe Working Load (lb.): 4,000 (1,810kg)

Breaking Strength (lb.): 8,000 (3,630kg)

Line Size (in.): 3/8"-1/2" (10mm-12mm)

Weight (oz.): 3.1 (87g)

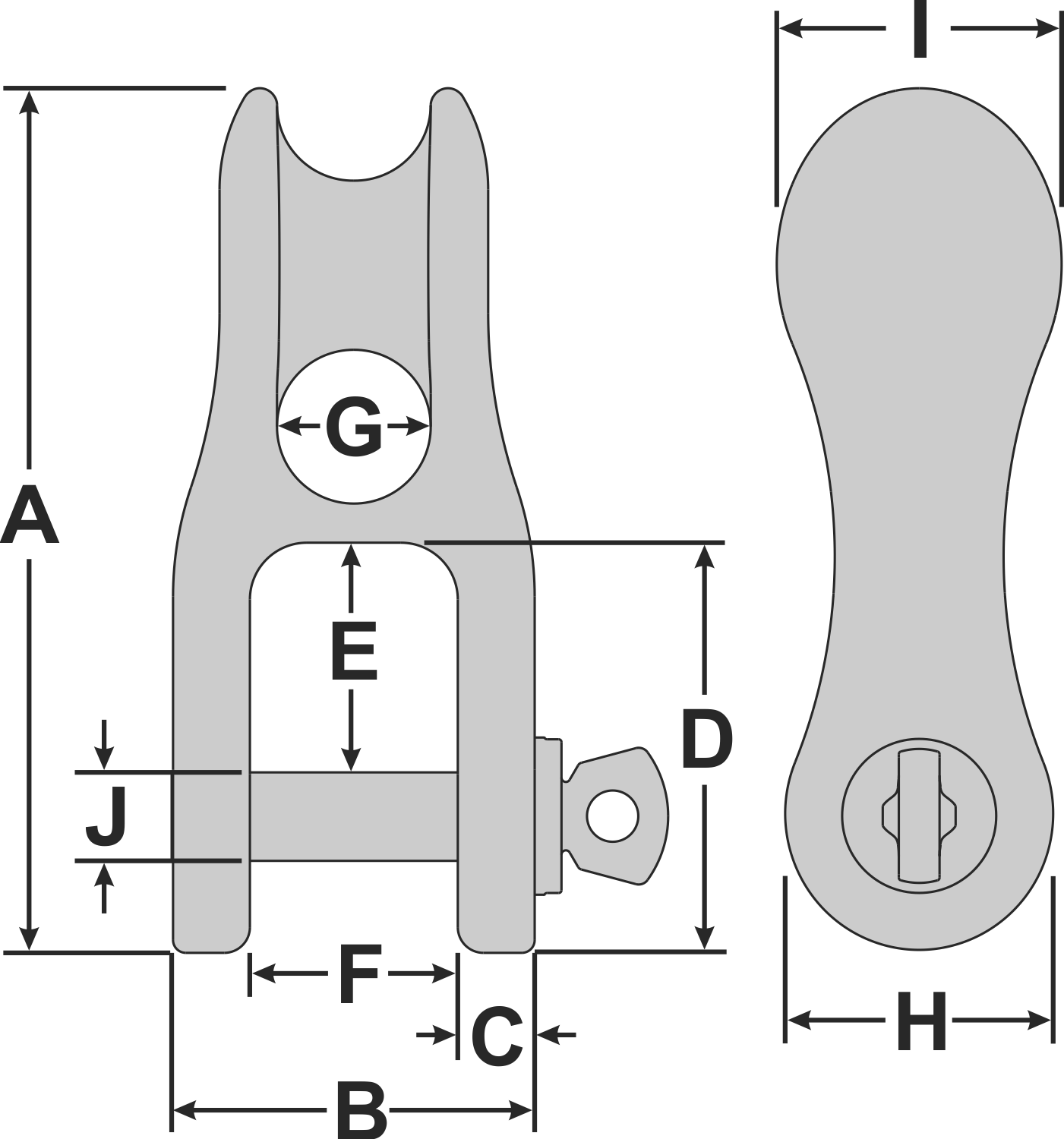

Dimensions:

A (in.): 3.16" (80.2mm)

B (in.): 1.32" (33.5mm)

C (in.): 0.28" (7.1mm)

D (in.): 1.50" (38.2mm)

E (in.): 0.83" (21.2mm)

F (in.): 0.76" (19.3mm)

G (in.): 0.56" (14.3mm)

H (in.): 1.00" (25.4mm)

I (in.): 1.07" (27.1mm)

J (in.): 0.31" (8.1mm)
