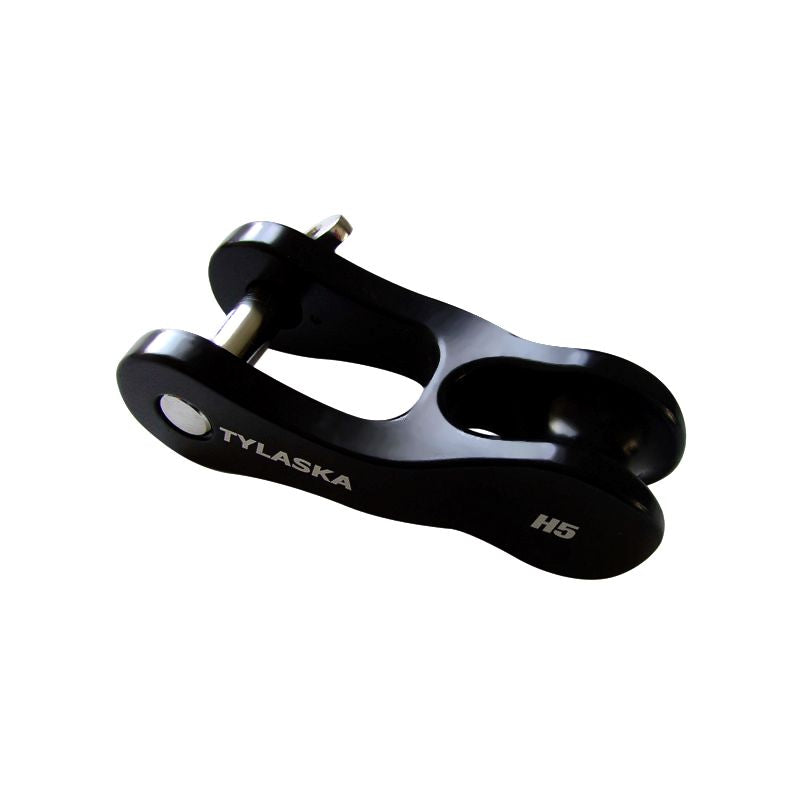

Tylaska 2.89" H5 Aluminum Halyard Shackle

Tylaska 2.89" H5 Aluminum Halyard Shackle

Tylaska’s halyard shackles are machined from aerospace grade aluminum plate and hard-coat anodized to military specifications for superior strength and durability. A captive 17-4PH stainless steel pin makes for trouble-free operation. The machined thimble surface is suitable for permanently spliced fixed halyards.

Specifications:

Shackle Type: H5

Safe Working Load (lb.): 2,500 (1,130kg)

Breaking Strength (lb.): 5,000 (2,270kg)

Line Size (in.): 5/16"-7/16" (8mm-11mm)

Weight (oz.): 1.8 (52g)

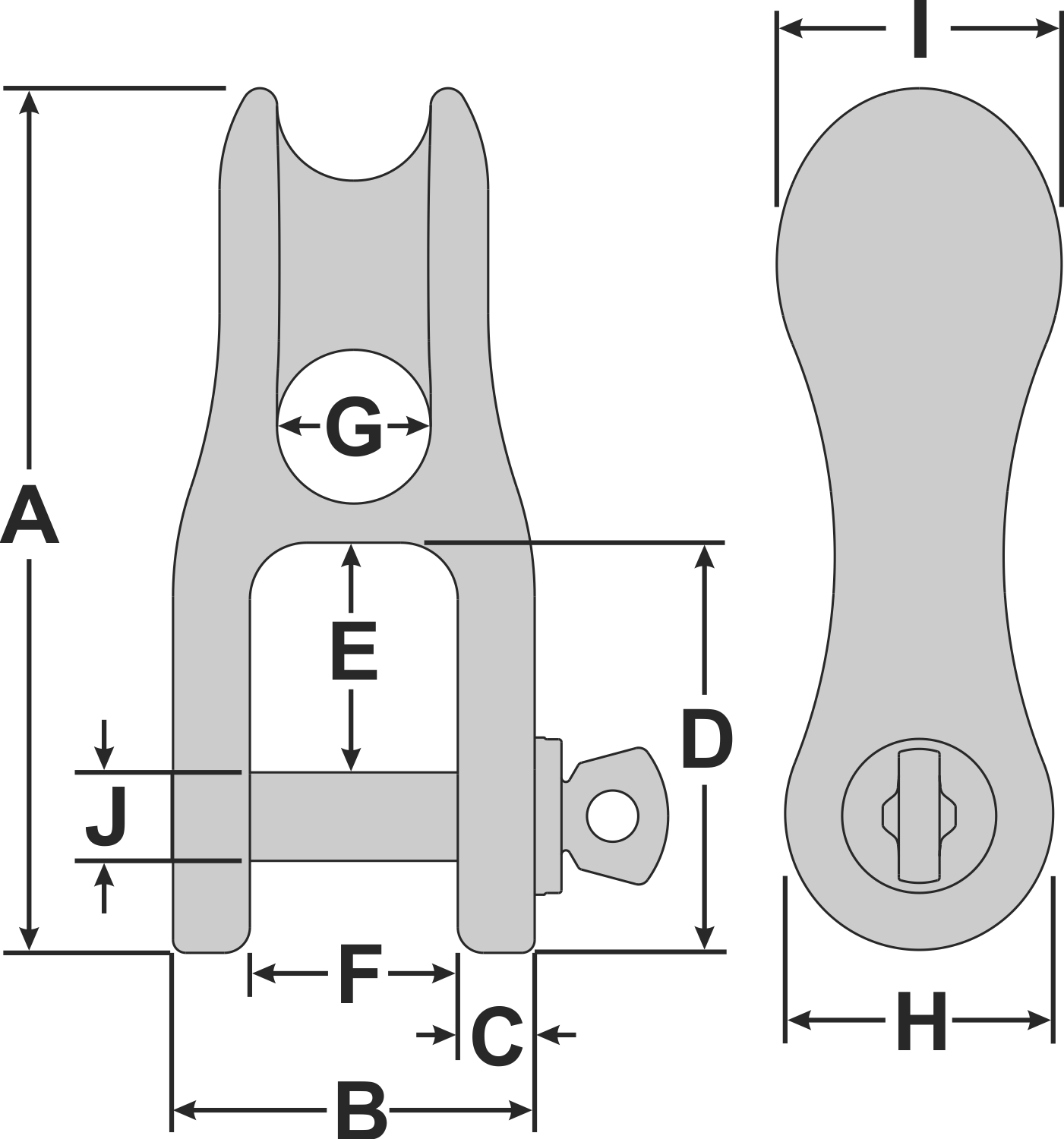

Dimensions:

A (in.): 2.89" (73.3mm)

B (in.): 1.07" (27.3mm)

C (in.): 0.22" (5.6mm)

D (in.): 1.44" (36.5mm)

E (in.): 0.87" (22mm)

F (in.): 0.63" (16.1mm)

G (in.): 0.50" (12.6mm)

H (in.): 0.88" (22.3mm)

I (in.): 0.95" (24.1mm)

J (in.): 0.26" (6.6mm)
