Tylaska 5 1/3" T20 Large/Clevis Bail Swivel

Tylaska 5 1/3" T20 Large/Clevis Bail Swivel

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications:

Shackle Type: T20 Large/Clevis Bail Swivel

Safe Working Load (lb.): 10,000 (4,540kg)

Breaking Strength (lb.): 20,000 (9,070kg)

Weight (oz.): 15.9

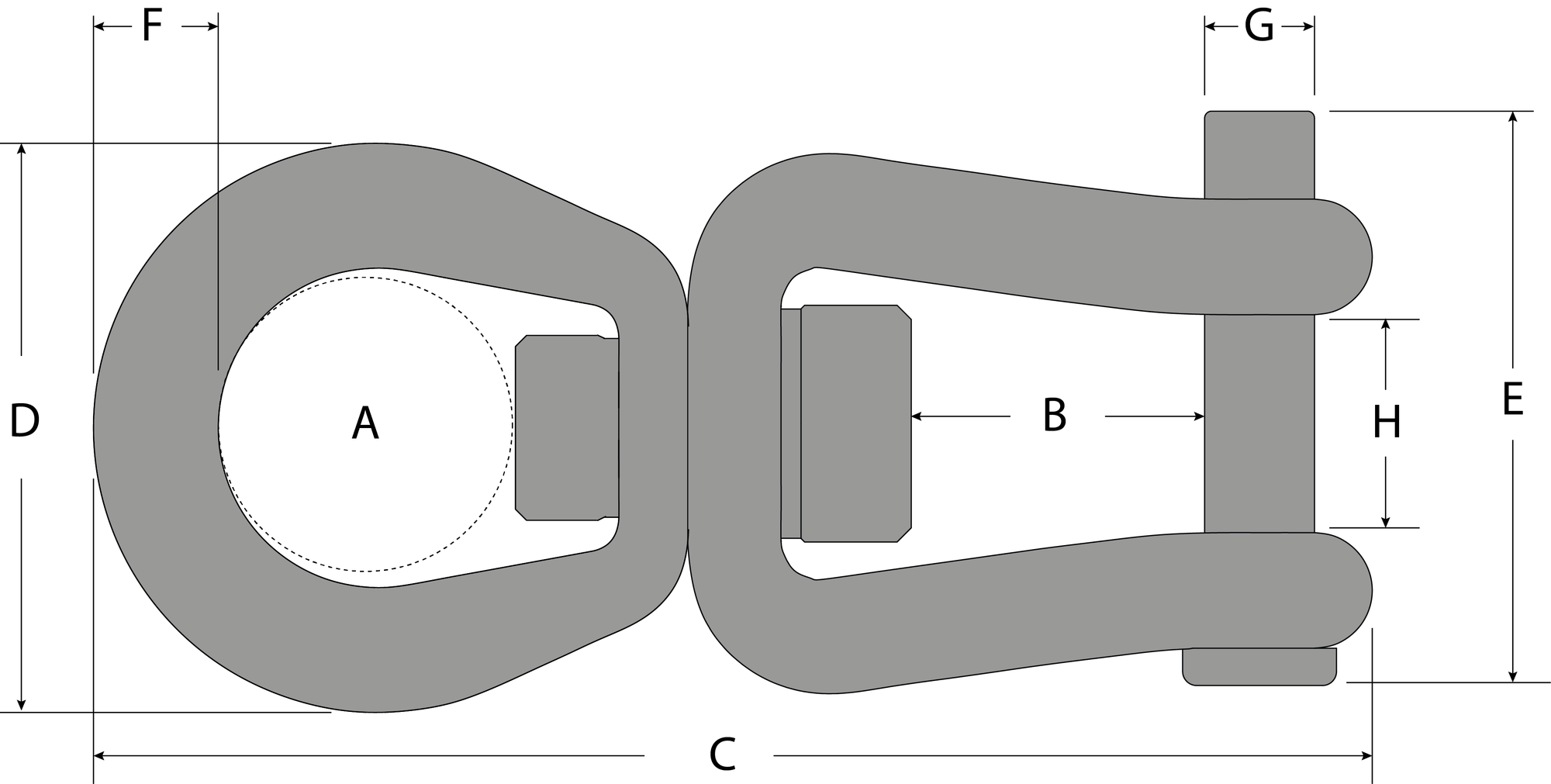

Dimensions:

A (in.): 1.39" (35.3mm)

B (in.): 1.13" (28.7mm)

C (in.): 5.24" (133mm)

D (in.): 2.60" (66mm)

E (in.): 2.16" (54.9mm)

F (in.): 0.57" (14.5mm)

G (in.): 0.43" (10.9mm)

H (in.): 0.84" (21.3mm)
