Product Description
Tylaska 3 5/16" T5 Large Bail Snap Shackle with Bronze PVD Finish
Tylaska T5 Snap Shackles are perfect for small boat applications requiring high strength and low weight. They have a breaking strength of 5,000 lbs and weigh just 2.2 ounces in the standard bail configuration. Ideal for J-24s, Mumm 30s and similar boats.
Specifications:
Shackle Type: T5 Large Bail
Safe Working Load (lb.): 2,500 (1,130kg)
Breaking Strength (lb.): 5,000 (2,270kg)
Boat Size (ft.): 20' - 30'
Weight (oz.): 2.7 (77g)

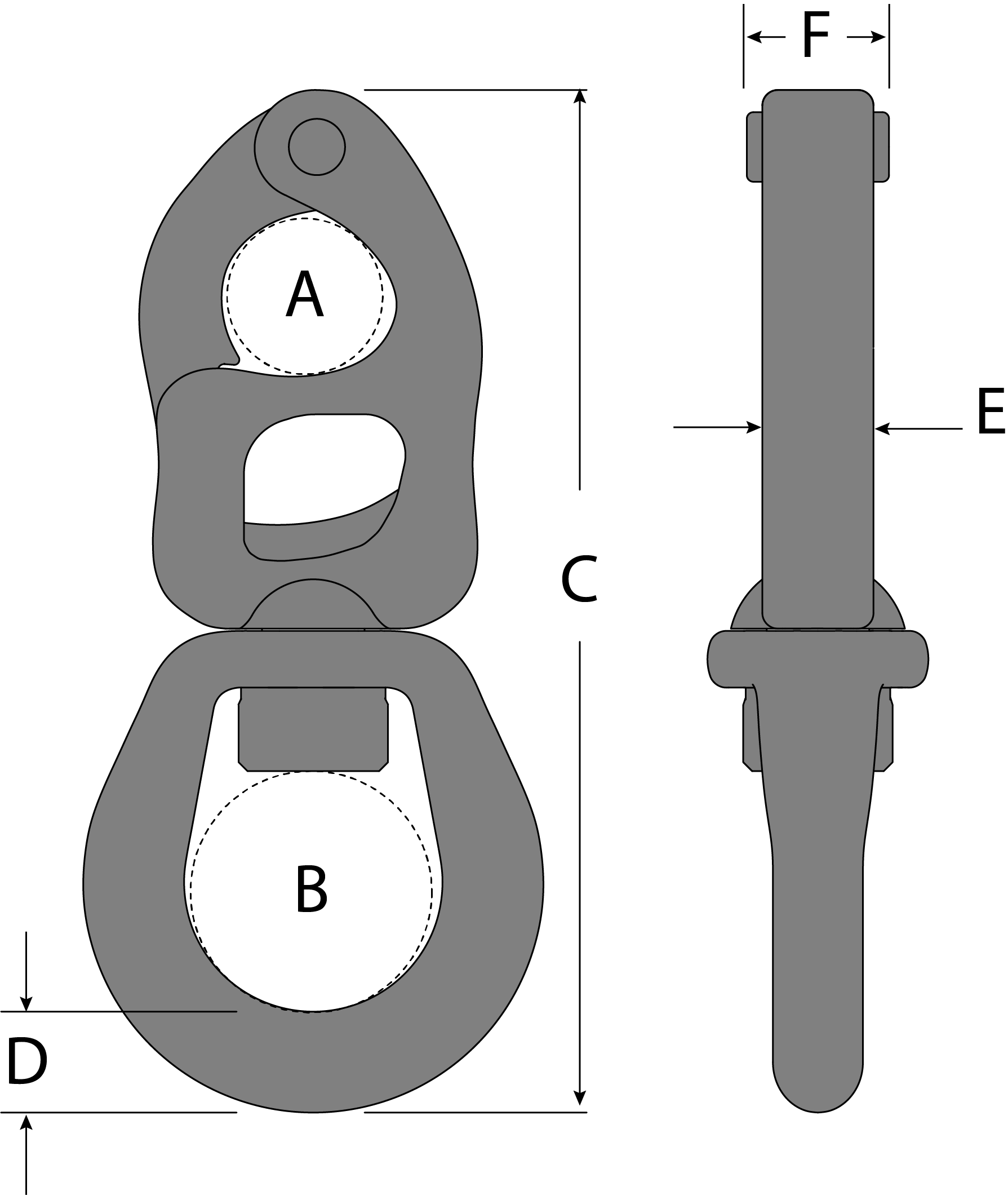

Dimensions:
A (in.): 0.53" (13.5mm)
B (in.): 0.81" (20.6mm)
C (in.): 3.37" (85.6mm)
D (in.): 0.29" (7.4mm)
E (in.): 0.30" (7.6mm)
F (in): 0.44" (11.1mm)
