Product Description

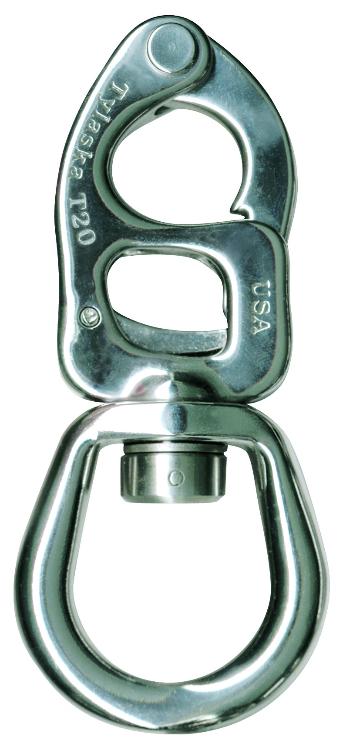

Tylaska 5 9/16" T20 Large Bail Snap Shackle
The T20 is a larger shackle designed for mid to large sized boats. They are popular on the America's Cup racing circuit. The T-20 has a breaking strength of 20,000 lbs. Standard bail configurations weigh only 11.9 oz. Ideal for 40 to 70 foot sailboats.
Specifications:
Shackle Type: T20 Large Bail
Safe Working Load (lb.): 10,000 (4,540kg)
Breaking Strength (lb.): 20,000 (9,070kg)
Boat Size (ft.): 40' - 70'
Weight (oz.): 15.9 (451g)
Dimensions:
A (in.): 0.99" (25.1mm)
B (in.): 1.39" (35.3mm)
C (in.): 5.79" (147.1mm)
D (in.): 0.56" (14.2mm)
E (in.): 0.55" (14mm)
F (in.): 0.75" (19mm)
