Product Description

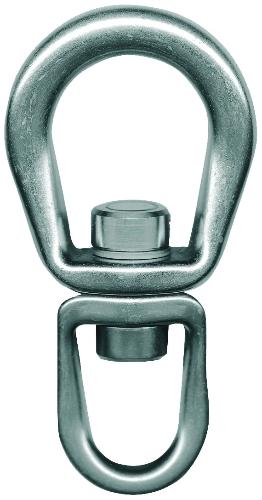

Tylaska 3 3/4" T12 Standard/Large Bail Swivel
Large Bails provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications:
Shackle Type: T12 Std/Large Bail Swivel
Safe Working Load (lb.): 6,000 (2,720kg)
Breaking Strength (lb.): 12,000 (5,440kg)
Weight (oz.): 6.0
Dimensions:
A (in.): 0.72" (18.3mm)
B (in.): 1.11" (28.2mm)
C (in.): 3.91" (99.4mm)
D (in.): 1.39" (35.3mm)
E (in.): 2.08" (52.8mm)
F (in.): 0.45" (11.4mm)
G (in.): 0.44" (11.2mm)
