Product Description

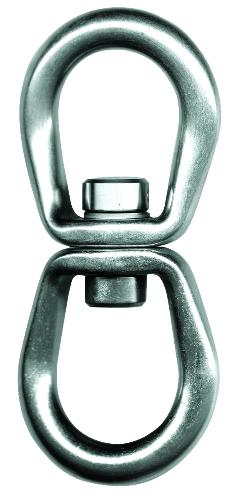

Tylaska 7" T30 Large/Large Bail Swivel
Large Bails provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications:
Shackle Type: T30 Large/Large Bail Swivel
Safe Working Load (lb.): 15,000 (6,800kg)
Breaking Strength (lb.): 30,000 (13,610kg)
Weight (oz.): 33.2

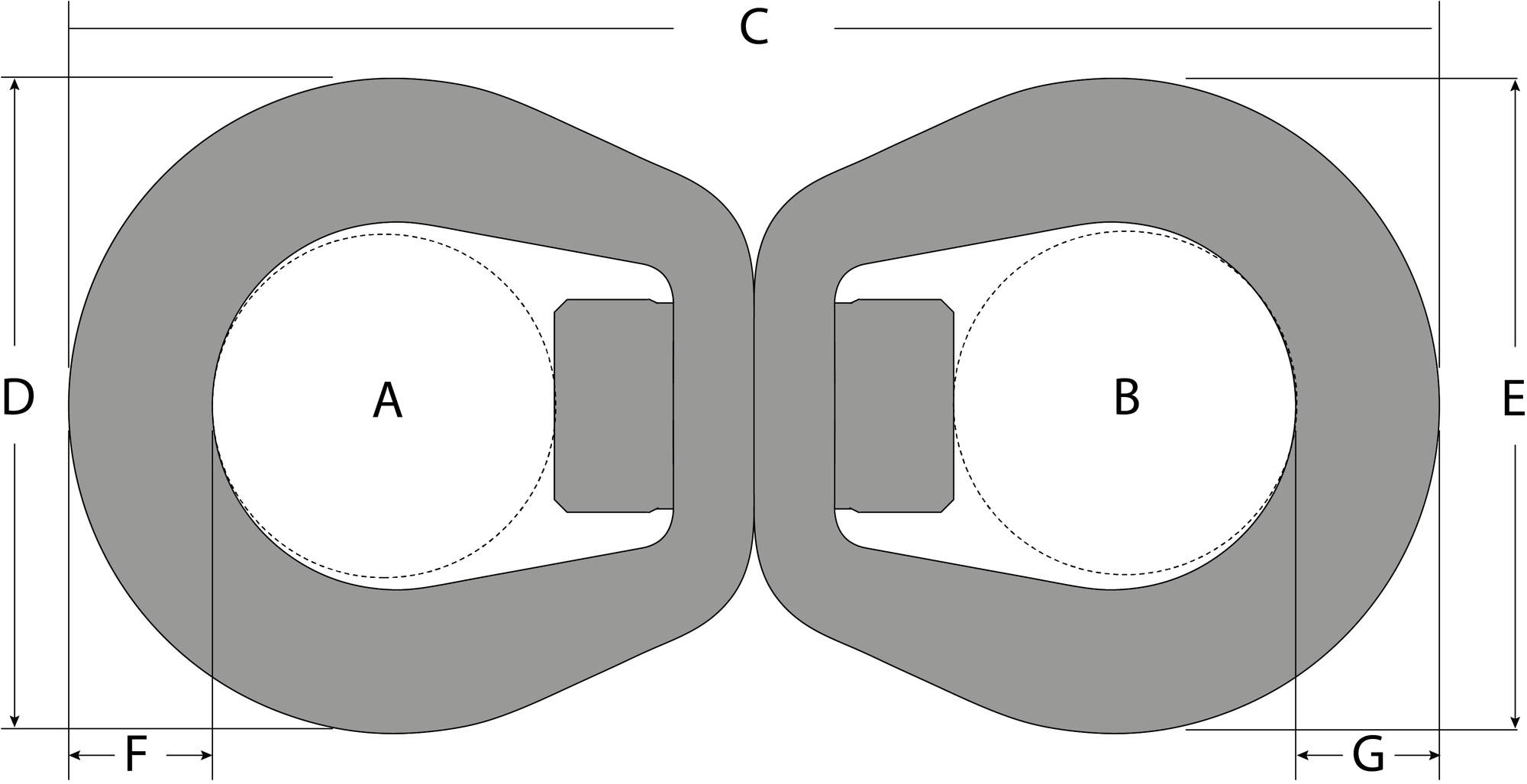

Dimensions:
A (in.): 1.76" (44.8mm)
B (in.): 1.76" (44.8mm)
C (in.): 7.08" (179.8mm)
D (in.): 3.37" (85.6mm)
E (in.): 3.37" (85.6mm)
F (in.): 0.74" (18.8mm)
G (in.): 0.74" (18.8mm)
