Product Description

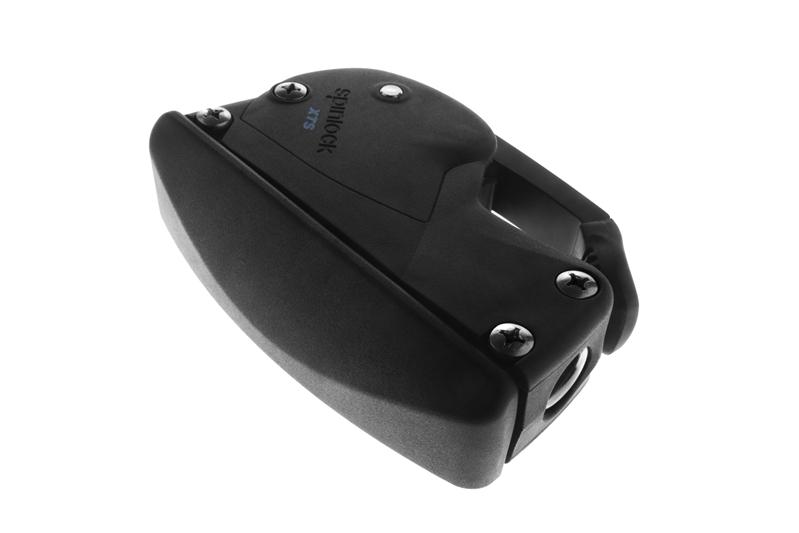

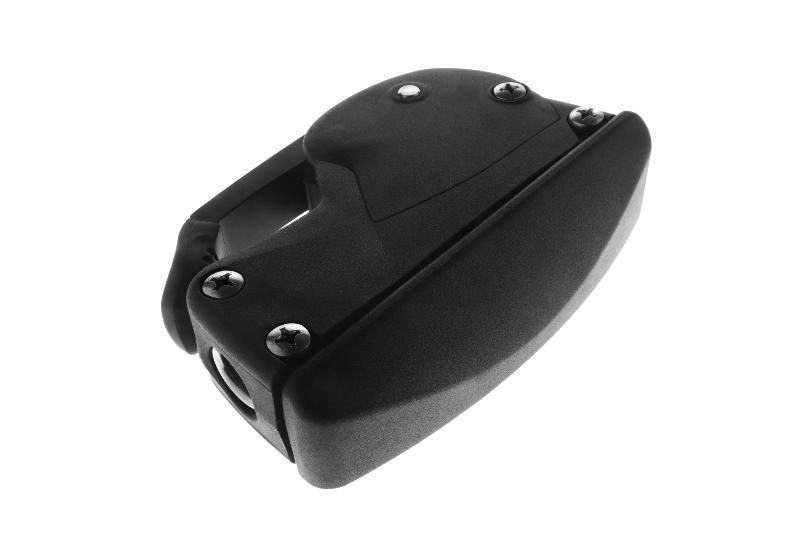

Spinlock XTS Ceramic Cam & Base 6-10mm Horizontal Clutch
Side mounting is usually the neatest solution for spars, side decks and coamings
Specifications:
Rope Range - 6mm - 10mm (1/4" - 3/8")
Load - 500kg - 1000kg (1103lb - 2200lb)
Max SWL - 1000kg (2200lb)
Weight - 0.646kg (1.42b)
Specified as standard on production yachts worldwide and the choice of racing yachts inshore and offshore
Features and Benefits:
Mid to higher load rope holding
Reliable all around performance
Choose XTS0610 for best performance on smaller diameter lines
Choose XTS0814 for best performance across the rope range
Ceramic Coated CAM and Base available for consistent holding & performance with modern performance lines
Extruded alloy handle with soft end grip
Secure handle locking in open and closed position
Easy access to fasteners
Handle labels supplied
Click Here for Installation & Usage Guide
Click Here for XTS Drill Template
Click Here for XTS Side Mounting Drill Template
