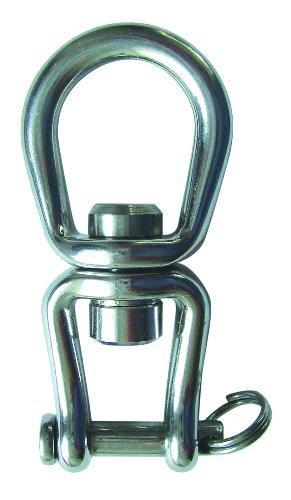

Tylaska 3" T5 Large/Clevis Bail Swivel

Tylaska 3" T5 Large/Clevis Bail Swivel

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications:

Shackle Type: T5 Large/Clevis Bail Swivel

Safe Working Load (lb.): 2,500 (1,130kg)

Breaking Strength (lb.): 5,000 (2,270kg)

Weight (oz.): 2.7

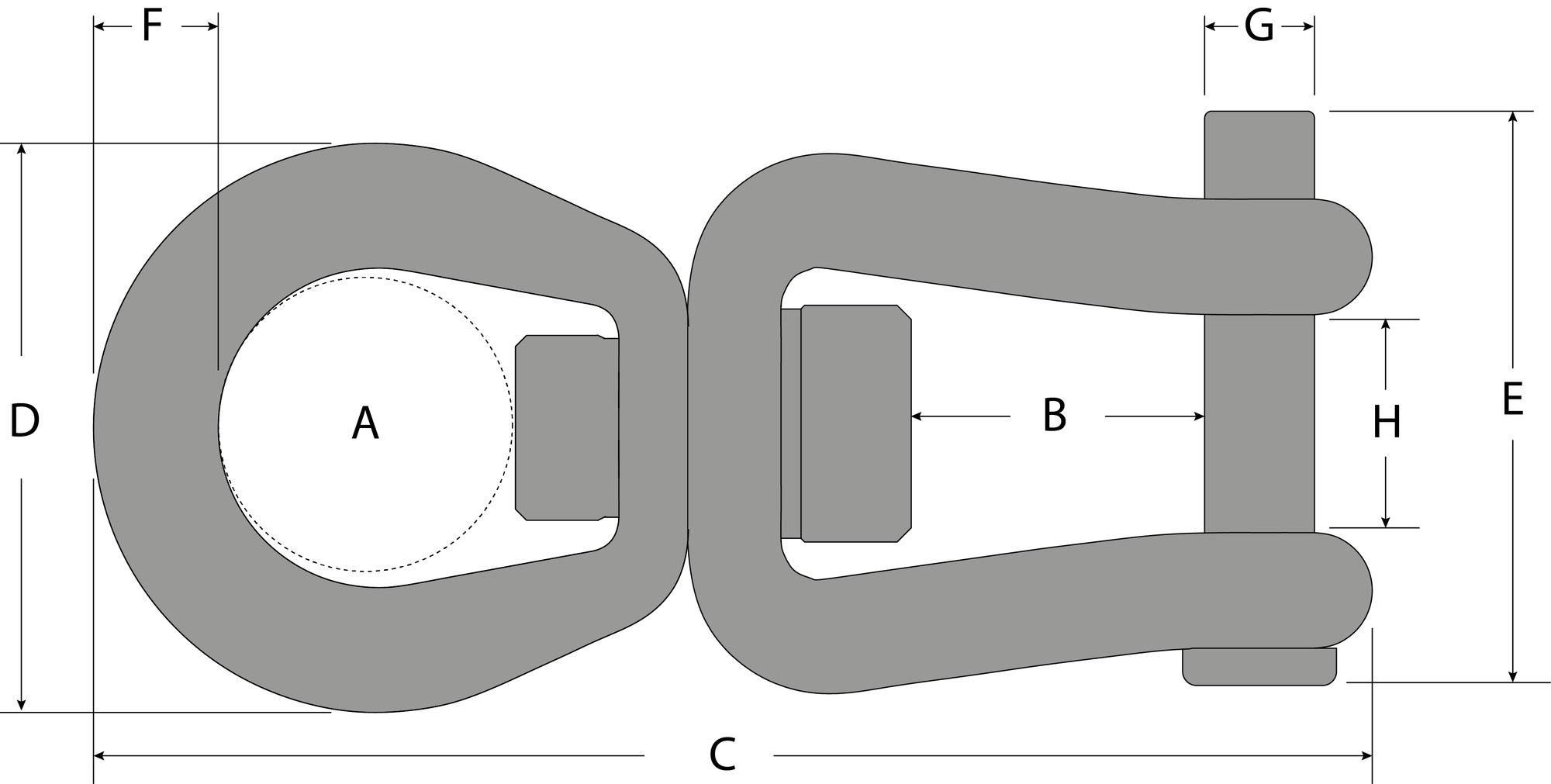

Dimensions:

A(in.): 0.81" (20.6mm)

B(in.): 0.64" (16.3mm)

C(in.): 2.96" (75.2mm)

D(in.): 1.44" (36.6mm)

E (in.): 1.30" (33mm)

F (in.): 0.29" (7.3mm)

G (in.): 0.24" (6.1mm)

H (in.): 0.55" (14mm)
