Product Description

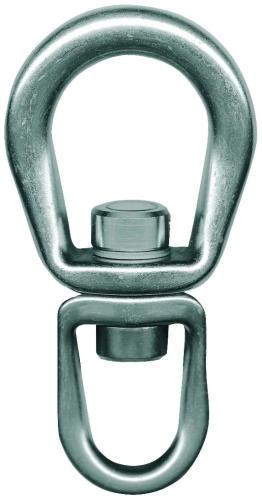

Tylaska 10 7/16" T50 Standard/Large Bail Swivel
Large Bails provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications:
Shackle Type: T50 Std/Large Bail Swivel
Safe Working Load (lb.): 25,000 (11,340kg)
Breaking Strength (lb.): 50,000 (22,680kg)
Weight (oz.): 127.6

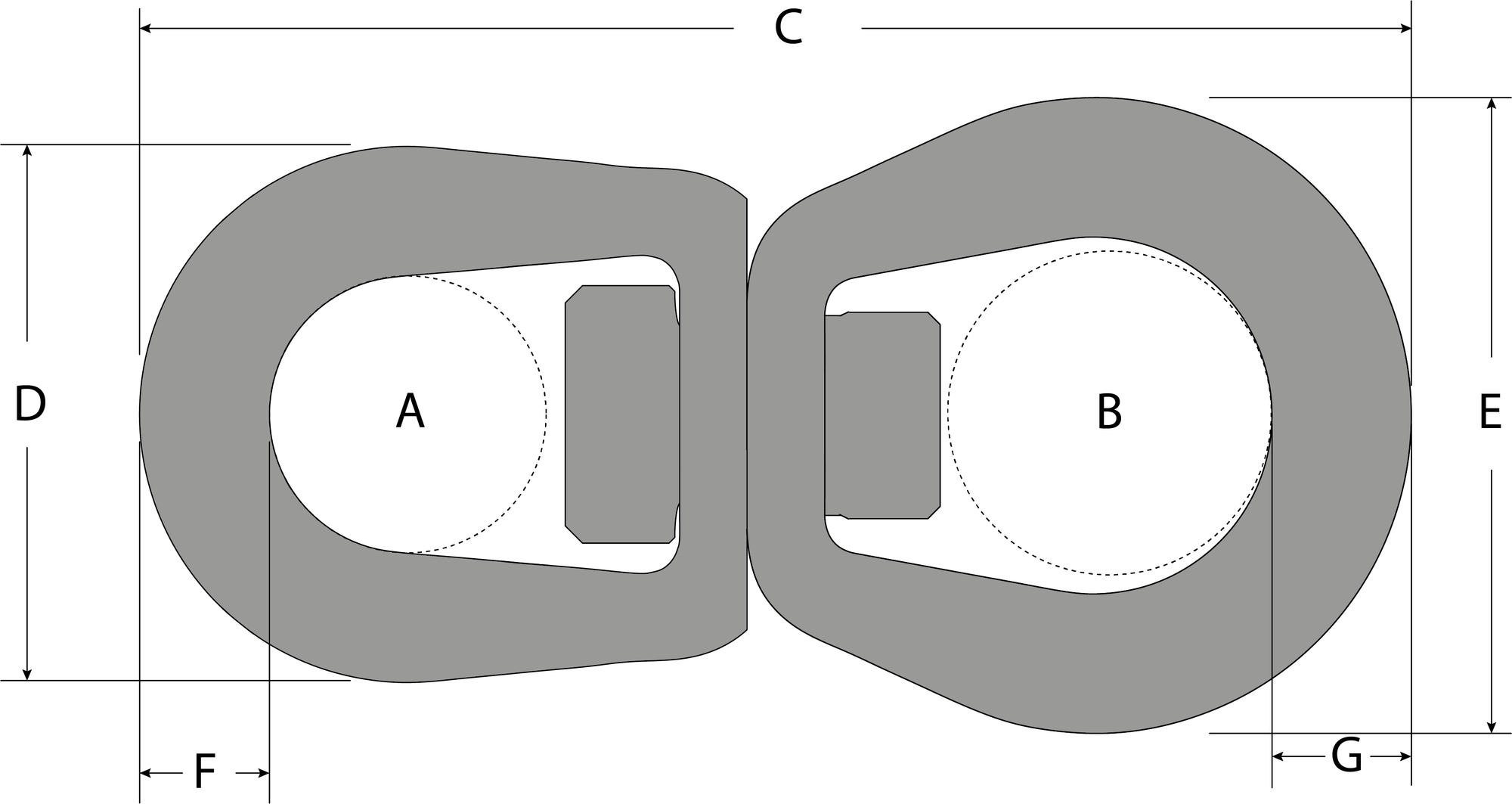

Dimensions:
A (in.): 2.00" (50.8mm)
B (in.): 2.98" (75.7mm)
C (in.): 10.39" (263.9mm)
D (in.): 3.65" (92.7mm)
E (in.): 5.49" (139.4mm)
F (in.): 0.83" (21.1mm)
G (in.): 1.14" (29mm)
