Product Description

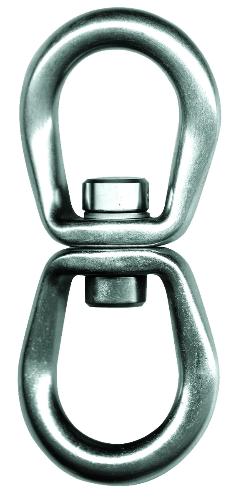

Tylaska 5 5/16" T20 Large/Large Bail Swivel
Large Bails provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications:
Shackle Type: T20 Large/Large Bail Swivel
Safe Working Load (lb.): 10,000 (4,540kg)
Breaking Strength (lb.): 20,000 (9,070kg)
Weight (oz.): 14.4

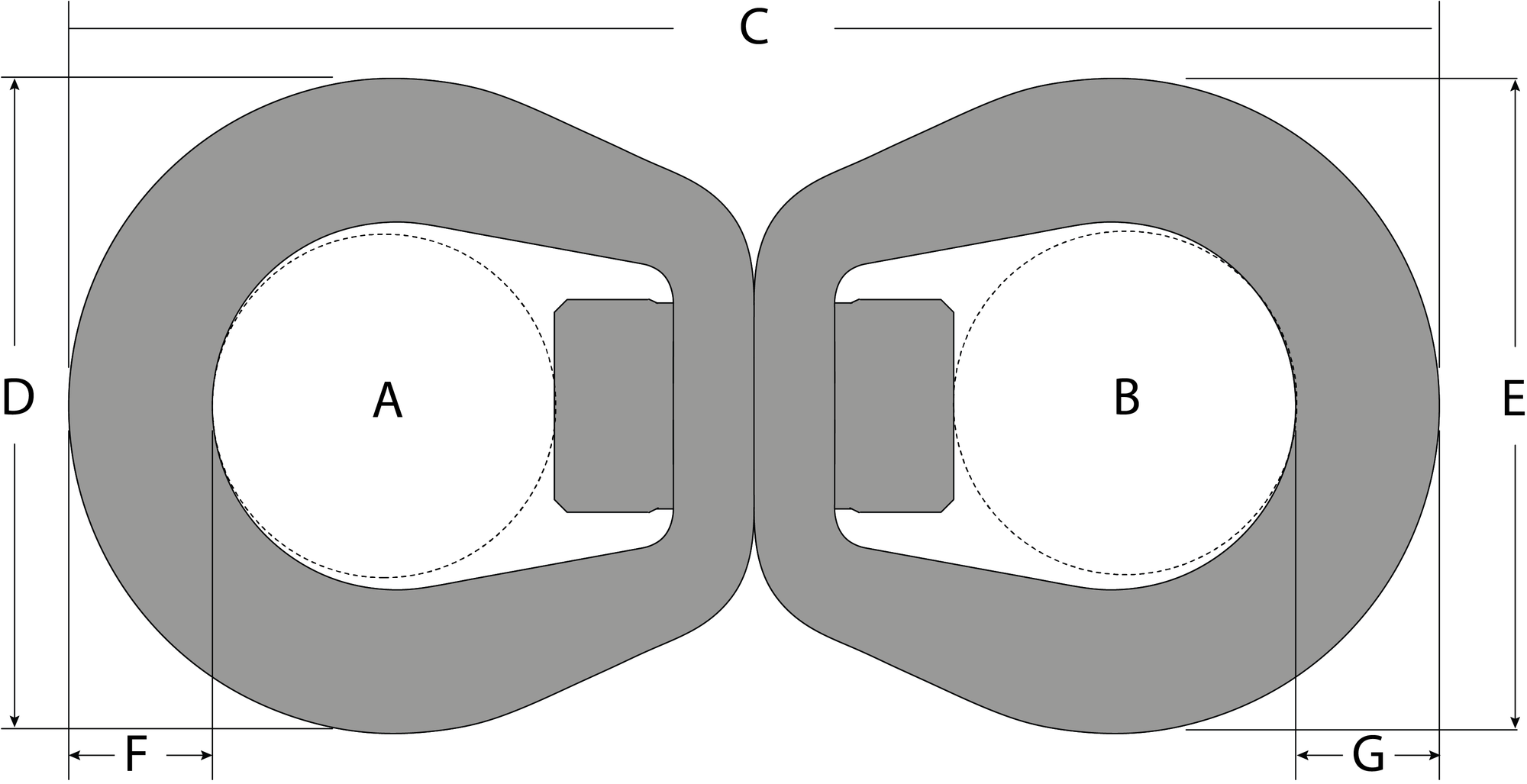

Dimensions:
A (in.): 1.39" (35.3mm)
B (in.): 1.39" (35.3mm)
C (in.): 5.48" (139.2mm)
D (in.): 2.60" (66mm)
E (in.): 2.60" (66mm)
F (in.): 0.57" (14.5mm)
G (in.): 0.57" (14.5mm)
